Designing a bathroom, even a seemingly straightforward 4x6 structure, demands meticulous attention to detail, especially when determining load specifications. Overlooking this crucial aspect can lead to structural deficiencies, safety hazards, and costly repairs down the line. This comprehensive guide delves into the intricacies of load calculations for a small bathroom, ensuring a safe, durable, and code-compliant space.

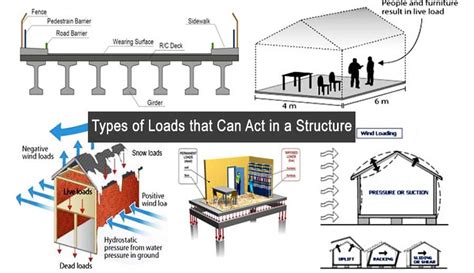

Understanding Load Types: The Foundation of Structural Integrity

Before diving into specific calculations, it's essential to grasp the different types of loads that a bathroom structure must withstand. These loads can be broadly categorized into two primary types: dead loads and live loads.

Dead Loads: The Unwavering Weight

Dead loads encompass the static weight of all permanent components of the bathroom. This includes the weight of the walls, flooring, ceiling, fixtures, and any other fixed elements. Accurately estimating dead loads is paramount, as they exert a constant and continuous force on the structure.

To calculate dead loads, you'll need to determine the weight per unit area (e.g., pounds per square foot or PSF) of each material used in the bathroom's construction. Here's a breakdown of common bathroom materials and their typical weights:

  • Framing (Wood Studs): Typically ranges from 2-3 PSF, depending on the spacing and size of the studs.
  • Drywall: Approximately 2-3 PSF for standard ½-inch drywall.
  • Flooring (Tile): Varies significantly based on the tile material and thickness. Ceramic tile can range from 3-5 PSF, while heavier stone tiles can exceed 10 PSF. Don't forget to include the weight of the mortar bed or underlayment.
  • Flooring (Vinyl): Generally lighter than tile, ranging from 1-3 PSF.
  • Ceiling (Drywall): Similar to wall drywall, around 2-3 PSF.
  • Fixtures (Toilet, Sink, Shower): These can vary widely. A standard toilet can weigh 75-120 pounds, a sink 20-50 pounds, and a shower base 50-100 pounds.

Once you have the weight per unit area for each material, multiply it by the corresponding area to determine the total dead load for that component. Summing the dead loads of all components will give you the total dead load acting on the bathroom structure.

Live Loads: The Dynamic Forces

Live loads, in contrast to dead loads, are variable and dynamic. They represent the weight of temporary or movable objects and occupants within the bathroom. These loads are not constant and can change over time.

Building codes typically specify minimum live load requirements for different types of spaces. For residential bathrooms, a common live load requirement is 40 PSF. This value accounts for the weight of people, furniture (e.g., a small stool or storage unit), and other movable items.

It's crucial to adhere to the minimum live load requirements specified in your local building codes. These codes are designed to ensure the safety and structural integrity of buildings under various loading conditions.

Calculating Total Load: Combining Dead and Live Loads

To determine the total load acting on the bathroom structure, simply add the total dead load and the total live load. This value represents the maximum load that the structure is expected to withstand.

Example Calculation: A 4x6 Bathroom

Let's illustrate the load calculation process with a hypothetical 4x6 bathroom. We'll assume the following:

  • Walls: Wood studs with ½-inch drywall (both sides)
  • Flooring: Ceramic tile with a mortar bed
  • Ceiling: ½-inch drywall
  • Live Load: 40 PSF (as per building code)

Step 1: Calculate Dead Loads

Walls:

  • Studs: 2.5 PSF (assumed)
  • Drywall (both sides): 2 PSF/side 2 sides = 4 PSF
  • Total Wall Dead Load: 2.5 PSF + 4 PSF = 6.5 PSF
  • Wall Area: (4 ft + 6 ft + 4 ft + 6 ft) 8 ft (assumed wall height) = 160 sq ft
  • Total Wall Load: 6.5 PSF 160 sq ft = 1040 lbs

Flooring:

  • Tile & Mortar Bed: 6 PSF (assumed)
  • Floor Area: 4 ft 6 ft = 24 sq ft
  • Total Floor Load: 6 PSF 24 sq ft = 144 lbs

Ceiling:

  • Drywall: 2.5 PSF (assumed)
  • Ceiling Area: 4 ft 6 ft = 24 sq ft
  • Total Ceiling Load: 2.5 PSF 24 sq ft = 60 lbs

Fixtures:

  • Toilet: 100 lbs (assumed)
  • Sink: 30 lbs (assumed)
  • Shower Base: 75 lbs (assumed)
  • Total Fixture Load: 100 lbs + 30 lbs + 75 lbs = 205 lbs

Total Dead Load: 1040 lbs (walls) + 144 lbs (floor) + 60 lbs (ceiling) + 205 lbs (fixtures) = 1449 lbs

Step 2: Calculate Live Load

  • Live Load: 40 PSF
  • Floor Area: 24 sq ft
  • Total Live Load: 40 PSF 24 sq ft = 960 lbs

Step 3: Calculate Total Load

  • Total Load: 1449 lbs (dead load) + 960 lbs (live load) = 2409 lbs

Therefore, the total load that the 4x6 bathroom structure is expected to withstand is approximately 2409 pounds. This value is crucial for selecting appropriate structural members (e.g., floor joists, wall studs) that can safely support the load.

Importance of Code Compliance

Adhering to local building codes is not merely a formality; it's a fundamental requirement for ensuring the safety and structural integrity of any building. Building codes provide specific guidelines for load calculations, material selection, and construction practices. These guidelines are based on extensive research and engineering principles, designed to protect occupants from structural failures.

Before commencing any bathroom renovation or construction project, it's imperative to consult with your local building department to obtain the necessary permits and understand the applicable building codes. Failure to comply with building codes can result in costly fines, project delays, and, more importantly, safety hazards.

Floor Joist Considerations: Supporting the Load

The floor joists play a critical role in supporting the weight of the bathroom, including the dead load of the flooring, fixtures, and the live load of occupants and movable items. Selecting the appropriate size and spacing of floor joists is essential to prevent floor sagging or structural failure.

The required size and spacing of floor joists depend on several factors, including:

  • Span: The distance between the joist supports.
  • Load: The total load acting on the floor, as calculated previously.
  • Species and Grade of Lumber: Different types of wood have different strength properties.
  • Deflection Limit: The maximum allowable amount of floor deflection under load.

To determine the appropriate floor joist size and spacing, consult with a qualified structural engineer or refer to span tables provided by lumber manufacturers or building codes. These tables provide guidance on selecting joists that can safely support the anticipated load over a given span.

Wall Framing: Ensuring Vertical Support

The wall framing, typically consisting of wood studs, provides vertical support for the bathroom walls and ceiling. The studs must be adequately sized and spaced to withstand the dead load of the wall materials and the live load imposed by wind or other external forces.

Similar to floor joists, the required size and spacing of wall studs depend on factors such as:

  • Wall Height: The vertical distance the studs must span.
  • Load: The total load acting on the wall, including dead load and wind load.
  • Species and Grade of Lumber: Different types of wood have different strength properties.
  • Sheathing Material: The type of sheathing used on the exterior of the wall can contribute to its structural strength.

Consult with a qualified structural engineer or refer to building codes for guidance on selecting appropriate wall studs for your bathroom project.

Professional Consultation: When to Seek Expert Advice

While this guide provides a comprehensive overview of load specifications for a 4x6 bathroom, it's important to recognize the limitations of self-calculations. In certain situations, seeking professional advice from a qualified structural engineer is highly recommended.

Consider consulting with a structural engineer in the following scenarios:

  • Complex Structural Designs: If your bathroom design involves unusual structural elements, such as large openings or cantilevered sections.
  • Uncertainty About Loads: If you are unsure about the accurate estimation of dead or live loads.
  • Seismic or High-Wind Zones: If your building is located in an area prone to earthquakes or high winds, as these forces can significantly impact structural loads.
  • Significant Modifications to Existing Structures: If you are making substantial alterations to the existing building structure, such as removing load-bearing walls.
  • Code Interpretation: If you have difficulty interpreting or understanding the applicable building codes.

A structural engineer can provide expert analysis and design solutions to ensure the safety and structural integrity of your bathroom project. Their expertise can help you avoid costly mistakes and ensure compliance with all applicable building codes.

Material Selection: Choosing the Right Components

The selection of appropriate building materials is crucial for ensuring the structural integrity and longevity of your bathroom. Choose materials that are not only aesthetically pleasing but also capable of withstanding the anticipated loads and environmental conditions.

Consider the following factors when selecting materials:

  • Strength and Durability: Choose materials that are strong enough to support the loads and durable enough to resist wear and tear.
  • Moisture Resistance: Bathrooms are inherently humid environments, so select materials that are resistant to moisture damage, such as mold and rot.
  • Fire Resistance: Consider materials with fire-resistant properties to enhance safety.
  • Code Compliance: Ensure that all materials meet the requirements of your local building codes.

Construction Practices: Ensuring Quality Workmanship

Even with accurate load calculations and appropriate material selection, poor construction practices can compromise the structural integrity of your bathroom. It's essential to adhere to sound construction principles and ensure that all work is performed by qualified professionals.

Pay attention to the following aspects of construction:

  • Proper Framing Techniques: Ensure that the framing is properly aligned, securely fastened, and free from defects.
  • Accurate Measurements: Take accurate measurements to ensure that all components fit together correctly.
  • Secure Fastenings: Use appropriate fasteners (e.g., nails, screws, bolts) to securely connect all structural members.
  • Proper Waterproofing: Implement effective waterproofing measures to prevent moisture damage.

Regular Inspections: Maintaining Structural Health

After the bathroom construction is complete, it's important to conduct regular inspections to identify any potential structural issues early on. Look for signs of sagging floors, cracked walls, or water damage. Addressing these issues promptly can prevent them from escalating into more serious problems.

Conclusion: A Safe and Durable Bathroom

Determining load specifications for a 4x6 bathroom is a critical step in ensuring its safety, durability, and code compliance. By understanding the different types of loads, performing accurate calculations, adhering to building codes, and employing sound construction practices, you can create a bathroom that will withstand the test of time. Remember, when in doubt, consult with a qualified structural engineer to ensure the structural integrity of your project.
