Understanding how loads transfer from floor slabs to supporting beams is crucial for structural engineers. Accurate load calculation ensures the structural integrity and safety of buildings. This article presents simplified formulas and methods for estimating wall loads on beams, focusing on practical application and ease of understanding.

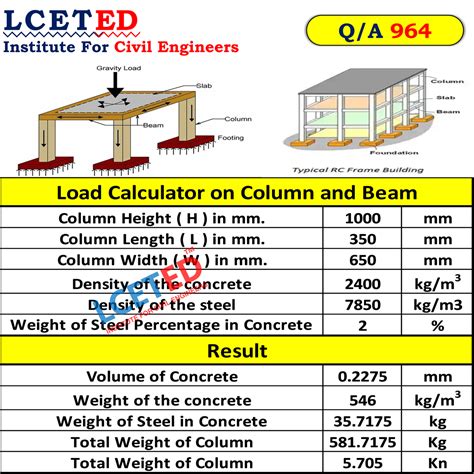

The Importance of Accurate Load Calculation

Before diving into the formulas, it's essential to understand why accurate load calculation is paramount. Underestimating loads can lead to structural failure, while overestimating can result in unnecessary material costs and inefficient designs. A well-calculated load distribution ensures that beams and other structural members are adequately sized to withstand the forces acting upon them.

11 Easy Methods to Understand Structural Loads Calculation

Formula 1: Tributary Width Method for Uniformly Distributed Loads

The tributary width method is a fundamental approach for determining the load transferred from a floor slab to a supporting beam. This method assumes that the beam supports the load from half the distance to the adjacent beams on either side. The formula is straightforward:

Load on Beam (w) = Tributary Width (b) x Slab Load (q)

Where:

  • w is the uniformly distributed load on the beam (typically in kN/m or lbs/ft).
  • b is the tributary width, which is half the distance to the adjacent beams on both sides.
  • q is the slab load, which includes the dead load (weight of the slab itself) and the live load (occupancy load).

Example:

Consider a floor slab with a total load (dead load + live load) of 5 kN/m². The beams are spaced 4 meters apart. The tributary width for an interior beam is half the distance to each adjacent beam, so b = 4m / 2 + 4m / 2 = 4m. Therefore, the load on the beam is w = 4m 5 kN/m² = 20 kN/m.

For an edge beam, the tributary width is simply half the distance to the adjacent beam. If the edge beam is 2 meters from the next beam, then b = 2m / 2 = 1m, and the load on the edge beam is w = 1m 5 kN/m² = 5 kN/m.

Formula 2: Accounting for Wall Loads Directly Above the Beam

In many cases, walls are constructed directly above beams. The weight of these walls must be added to the load from the floor slab. The formula becomes:

Total Load on Beam (w_total) = (Tributary Width (b) x Slab Load (q)) + Wall Load (w_wall)

Where:

  • w_total is the total uniformly distributed load on the beam.
  • w_wall is the weight of the wall per unit length of the beam (typically in kN/m or lbs/ft). This is calculated by multiplying the wall's weight per unit area by its height.

Example:

Using the previous example, let's assume there's a wall directly above the beam with a weight of 10 kN/m. The total load on the beam is now w_total = 20 kN/m (from the slab) + 10 kN/m (from the wall) = 30 kN/m.

Point Load from Columns Supported by the Beam

Sometimes, beams support columns, which introduce point loads. These point loads must be considered separately from the uniformly distributed load. The formula for the total load on the beam, including a point load, is more complex and requires structural analysis software for precise determination of bending moments and shear forces. However, a simplified approach is to consider the point load separately when designing the beam.

Total Load on Beam (considering point load) = Uniformly Distributed Load + Point Load (P)

Where:

  • P is the magnitude of the point load (typically in kN or lbs).

The point load is typically the axial load from the column above. This load needs to be factored into the beam design to ensure it can withstand the concentrated force.

Example:

Suppose a beam supports a column carrying an axial load of 50 kN. The beam also has a uniformly distributed load of 20 kN/m. The beam must be designed to withstand both the 20 kN/m distributed load and the 50 kN point load at the location where the column is supported.

Load Reduction Factors for Live Loads

Building codes often allow for live load reduction based on the tributary area supported by a structural member. This is because it's unlikely that the entire tributary area will be subjected to the full design live load simultaneously. The reduction factor is typically applied to the live load component of the slab load.

The specific reduction factor varies depending on the building code and the type of occupancy. A common formula for live load reduction is:

L = L₀ (0.25 + 4.57 / √A_T)

Where:

  • L is the reduced live load.
  • L₀ is the unreduced live load.
  • A_T is the tributary area in square meters (or square feet).

This formula is just an example, and the actual formula used should comply with the relevant building code.

Example:

Assume the unreduced live load is 2 kN/m², and the tributary area is 20 m². Using the formula above, the reduced live load is L = 2 kN/m² (0.25 + 4.57 / √20) = 2 kN/m² (0.25 + 1.02) = 2.54 kN/m². This reduced live load would then be used in the slab load calculation.

Dynamic Load Considerations

While the previous formulas primarily address static loads, it's crucial to consider dynamic loads in certain situations. Dynamic loads are loads that change rapidly over time, such as those caused by machinery, impacts, or seismic activity. These loads can significantly increase the stress on structural members.

A simplified approach to account for dynamic loads is to apply a dynamic load factor (DLF) to the static load. The DLF is a multiplier that increases the static load to account for the dynamic effects.

Dynamic Load = Static Load x Dynamic Load Factor (DLF)

The DLF depends on the nature of the dynamic load and the structural system. For example, a DLF of 2 might be used for impact loads, while a DLF of 1.25 might be used for loads from vibrating machinery. A detailed dynamic analysis is often required for complex dynamic loading scenarios.

Example:

If a machine exerts a static load of 10 kN on a beam, and the DLF for the machine is 1.5, the dynamic load is 10 kN 1.5 = 15 kN. The beam must be designed to withstand this dynamic load.

Practical Considerations and Best Practices

While these formulas provide a simplified approach to load calculation, several practical considerations and best practices should be followed:

  • Consult Building Codes: Always refer to the relevant building codes and standards for specific requirements and load factors. Building codes provide minimum design requirements to ensure structural safety.
  • Consider Load Combinations: Building codes typically specify various load combinations that must be considered in the design. These combinations include different combinations of dead loads, live loads, wind loads, seismic loads, and other loads.
  • Account for Material Properties: The strength and stiffness of the materials used in the structure must be accurately determined. This includes the concrete strength, steel yield strength, and modulus of elasticity.
  • Use Structural Analysis Software: For complex structures or loading scenarios, structural analysis software is essential. These programs can accurately model the structure and calculate the internal forces and stresses.
  • Consider Deflection Limits: In addition to strength requirements, deflection limits must also be considered. Excessive deflection can cause serviceability problems, such as cracking of finishes or malfunctioning of doors and windows.
  • Factor of Safety: Always incorporate an appropriate factor of safety in the design to account for uncertainties in the load calculations and material properties.
  • Document Assumptions: Clearly document all assumptions made during the load calculation process. This includes assumptions about the slab load, wall weight, and live load reduction factors.
  • Peer Review: Have the load calculations and structural design reviewed by another qualified engineer. This helps to identify potential errors and ensure the accuracy of the design.

Common Mistakes to Avoid

Several common mistakes can lead to inaccurate load calculations and structural problems. Here are some of the most common mistakes to avoid:

  • Underestimating Dead Loads: Dead loads are often underestimated, especially when considering the weight of finishes, mechanical equipment, and other non-structural elements.
  • Ignoring Partition Loads: Partition loads can be significant, especially in office buildings where partitions are frequently moved or reconfigured.
  • Using Incorrect Live Load Values: Using incorrect live load values can lead to either under-design or over-design. Always refer to the building code for the appropriate live load values for different occupancies.
  • Neglecting Dynamic Loads: Neglecting dynamic loads can be particularly dangerous in structures that support machinery or are subject to impact loads.
  • Failing to Consider Load Combinations: Failing to consider all relevant load combinations can lead to an unsafe design.
  • Ignoring Deflection Limits: Ignoring deflection limits can lead to serviceability problems, even if the structure is strong enough to resist the applied loads.
  • Not Documenting Assumptions: Not documenting assumptions can make it difficult to verify the accuracy of the load calculations and structural design.

Advanced Load Calculation Techniques

While the formulas presented in this article provide a simplified approach to load calculation, more advanced techniques are available for complex structures or loading scenarios. These techniques include:

  • Finite Element Analysis (FEA): FEA is a powerful numerical method that can be used to analyze complex structures with irregular geometries and loading conditions.
  • Influence Lines: Influence lines are graphical representations of the effect of a moving load on a structural member. They can be used to determine the maximum bending moment and shear force at any point in the structure.
  • Plastic Analysis: Plastic analysis is a method of structural analysis that considers the plastic behavior of materials. It can be used to determine the ultimate load-carrying capacity of a structure.

These advanced techniques require specialized knowledge and software and are typically used by experienced structural engineers.

Conclusion

Accurate load calculation is a critical aspect of structural engineering. By understanding the fundamental principles and applying the simplified formulas presented in this article, engineers can effectively estimate wall loads on beams and ensure the structural integrity and safety of buildings. Remember to always consult building codes, consider load combinations, account for material properties, and use structural analysis software when necessary. By following these best practices, you can avoid common mistakes and create safe and efficient structural designs.

This article provides a starting point for understanding load calculations. Further research and consultation with experienced structural engineers are recommended for complex projects.

Disclaimer: This article is for informational purposes only and should not be considered as professional engineering advice. Always consult with a qualified structural engineer for specific design recommendations.
